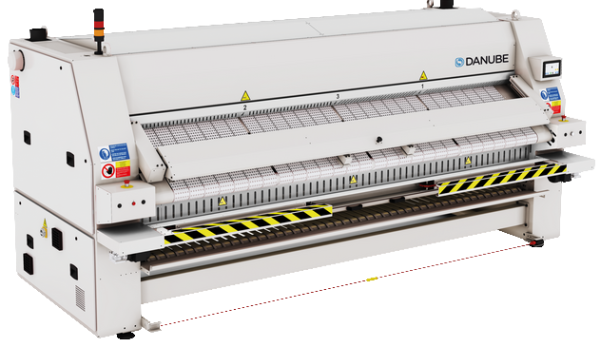

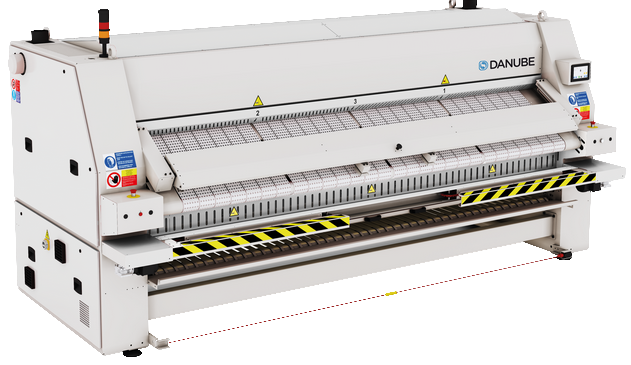

The DANUBE SP600-2600 - D cylinder mangle represents the top of the range in the category of industrial and commercial cylinder mangles. This professional cylinder mangle is specially designed to meet the high demands of industrial and commercial use. With its steam-heated technology and powerful steam extraction system, it guarantees efficient and even smoothing of textiles. The integrated frequency converter enables precise control of the ironing speed, while the required compressed air connection of 6.5 bar ensures optimal folding by means of light barriers and compressed air.
The cylinder mangle for industrial and commercial use features a polished steel roller with a finger guard strip, which ensures maximum safety during operation. The Nomex guides facilitate the insertion and ironing of textiles, ensuring a smooth process. The option of longitudinal folding with 1 or 2 folds on two independent tracks offers additional flexibility for different types and sizes of textiles. With one working track for sheets and two for table linen or small items, this commercial cylinder mangle is particularly versatile.
The touchscreen control allows for intuitive operation and the creation of individual ironing programs to meet the different requirements of the textiles. The high production capacity of this industrial cylinder mangle depends directly on the residual moisture of the textiles to be ironed, which enables efficient planning and execution of the ironing process. The automatic stop when cooling down to 80 °C increases the safety and energy efficiency of the device.
In summary, the DANUBE SP600-2600 - D cylinder mangle offers an outstanding solution for demanding ironing requirements in the commercial and industrial sectors by combining advanced technology with high efficiency and user-friendliness.
Features
- Steam heated
- Frequency converter
- Powerful steam extraction system
- Compressed air connection required: 6.5 bar
- Automatic stop when cooling down (80 ºC)
- Folding using light barriers and compressed air
- Polished steel roller with finger guard strip
- Guides made of Nomex for easier insertion and ironing
- Longitudinal folding with 1 or 2 folds on two independent tracks
- One working track for sheets and two for table linen or small items
- A touchscreen control allows programs to be created
- High production capacity depending on the residual moisture of the textiles
Technical features
- Electrical connection: 1.9 kW
- Capacity: 125 kg/h
- Dimensions (HxWxD): 2030x3670x1440 mm
- Weight: 2050 kg
- Electrical voltage: 400 V
- Mains frequency: 50 Hz
- Heating: steam heated
- Working width: up to 3000 mm
- Roller diameter: up to 600 mm
- Type of laundry mangle: Cylinder mangle
- Operation (model): wall-mounted model (2 persons)
