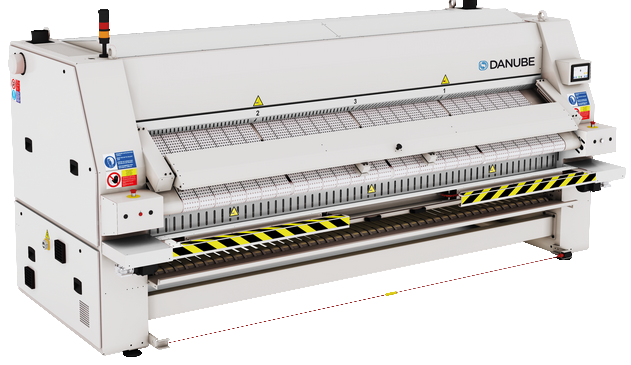

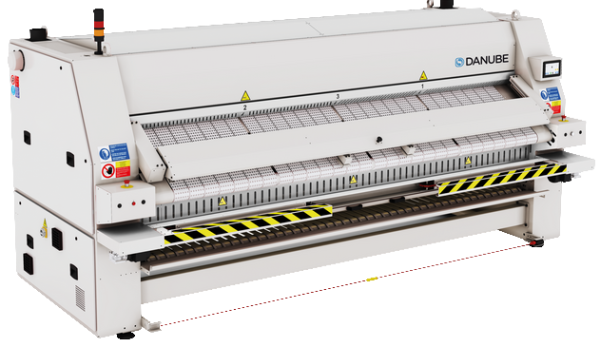

The DANUBE SP800-2600 - D cylinder mangle represents the pinnacle of innovation in the field of industrial and commercial cylinder mangles. This sophisticated industrial cylinder mangle is specially designed for demanding applications in industry and commerce, where efficiency and precision are paramount. With its steam-heated technology and powerful steam extraction system, it guarantees exceptional ironing quality and efficiency. The integrated frequency converter enables precise control of the ironing speed, while the required compressed air connection of 6.5 bar supports folding by means of light barriers and compressed air to achieve optimal results.
The professional cylinder mangle is equipped with a polished steel roller, which not only ensures even heat distribution but is also fitted with a finger guard for maximum safety during operation. The Nomex guides facilitate the insertion and ironing of the laundry, while the option of longitudinal folding with 1 or 2 folds on two independent tracks allows flexible processing of everything from sheets to table linen or small items. The commercial cylinder mangle offers one working path for sheets and two for table linen or small items, making it a versatile tool in any commercial laundry operation.
Another highlight is the touchscreen control, which enables intuitive operation and the creation of individual programs to meet a wide range of requirements. The high production capacity of these industrial and commercial cylinder mangles depends directly on the residual moisture of the textiles, which enables efficient planning and execution of the ironing process. The automatic stop when the temperature drops below 80 °C also ensures energy-efficient operation and contributes to the longevity of the machine.
Overall, the DANUBE SP800-2600 - D cylinder mangle offers an outstanding solution for all professional applications where reliability, efficiency, and the highest ironing quality are required.
Features
- Steam heated
- Frequency converter
- Powerful steam extraction system
- Compressed air connection required: 6.5 bar
- Automatic stop when cooling down (80 ºC)
- Folding using light barriers and compressed air
- Polished steel roller with finger guard strip
- Guides for easier insertion and ironing made of Nomex
- Longitudinal folding with 1 or 2 folds on two independent tracks
- One working track for sheets and two for table linen or small items
- A touchscreen control allows programs to be created
- High production capacity depending on the residual moisture of the textiles
Technical features
- Electrical connection: 2.2 kW
- Output: 170-195 kg/h
- Dimensions (HxWxD): 2200x3790x1770 mm
- Weight: 2535 kg
- Electrical voltage: 400 V
- Mains frequency: 50 Hz
- Heating: steam heated
- Working width: up to 3000 mm
- Roller diameter: up to 800 mm
- Laundry mangle type: Cylinder mangle
- Operation (model): wall-mounted model (2 persons)
