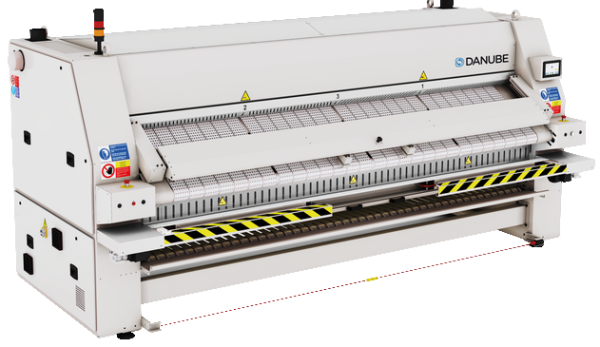

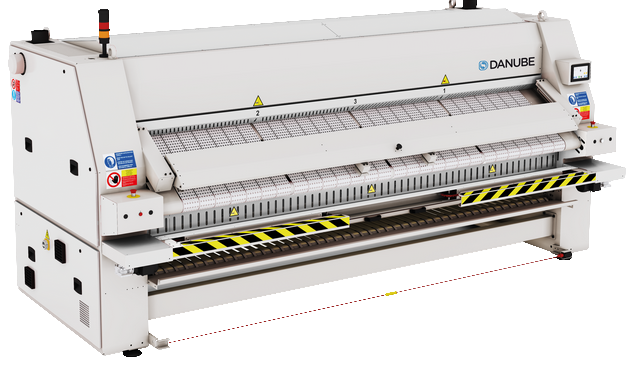

The DANUBE SP800-3300 1-2-track cylinder mangle represents the top of the range in the category of industrial and commercial cylinder mangles. This professional cylinder mangle is specially designed for use in industrial and commercial settings to meet high demands for efficiency and performance. With its steam-heated technology and powerful steam extraction system, it guarantees optimal ironing quality. The integrated frequency converter enables precise control of the ironing speed, while the required compressed air connection of 6.5 bar ensures reliable operation.
The commercial cylinder mangle is equipped with an automatic stop that is activated when the temperature drops to 80 ºC to save energy and increase safety. The textiles are folded using light barriers and compressed air, which enables precise and efficient processing. The polished steel roller with finger guard and the Nomex guides facilitate the insertion and ironing of the textiles and contribute to the durability of the industrial cylinder mangle.
With the option of longitudinal folding with 1 or 2 folds on two independent tracks, this industrial and commercial cylinder mangle offers a high degree of flexibility in textile processing. One working lane is specially designed for sheets, while two lanes are intended for table linen or small items. The touchscreen control allows programs to be easily created and customized to meet different requirements.
The high production capacity of this professional cylinder mangle depends on the residual moisture of the textiles and is therefore an efficient solution for businesses with high throughput. The DANUBE SP800-3300 1-2 lane cylinder mangle - D is therefore an ideal choice for demanding commercial applications that require maximum efficiency and quality.
Features
- Steam heated
- Frequency converter
- Powerful steam extraction system
- Compressed air connection required: 6.5 bar
- Automatic stop when cooling down (80 ºC)
- Folding using light barriers and compressed air
- Polished steel roller with finger guard
- Guides made of Nomex for easier insertion and ironing
- Longitudinal folding with 1 or 2 folds on two independent tracks
- One working track for sheets and two for table linen or small items
- A touchscreen control allows programs to be created
- High production capacity depending on the residual moisture of the textiles
Technical features
- Electrical connection: 2.2 kW
- Output: 220-253 kg/h
- Dimensions (HxWxD): 2200x4480x1770 mm
- Weight: 2,835 kg
- Electrical voltage: 400 V
- Mains frequency: 50 Hz
- Heating: steam heated
- Working width: up to 3500 mm
- Roller diameter: up to 800 mm
- Laundry mangle type: Cylinder mangle
- Operation (model): wall-mounted model (2 persons)
