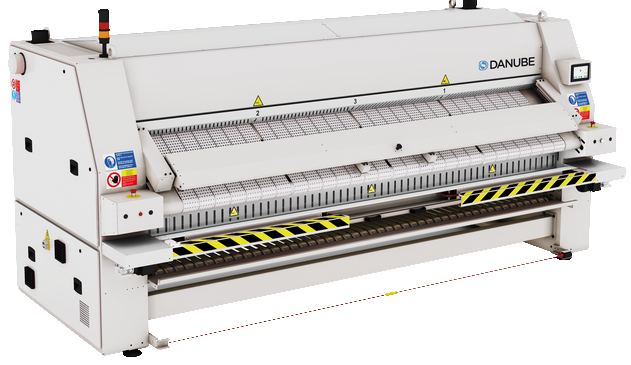

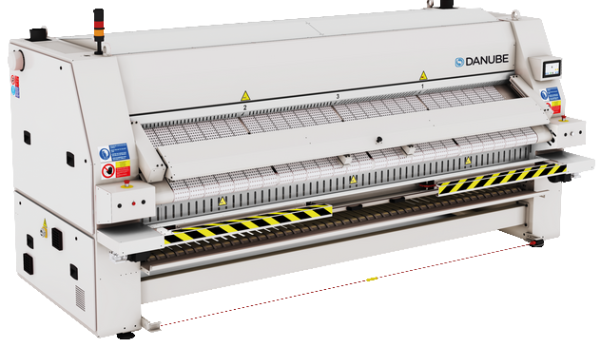

The DANUBE SP800-3300 - E cylinder mangle represents the top of the range in the category of industrial and commercial cylinder mangles. Equipped with a frequency converter, this model ensures optimal adaptation to the respective ironing requirements. A powerful steam extraction system ensures efficient moisture removal, while the required compressed air connection of 6.5 bar ensures precise and reliable operation.
The professional cylinder mangle features innovative safety equipment, including an automatic stop when cooling down to 80 ºC and a polished steel roller with finger guard. Nomex guides facilitate handling and ensure higher ironing quality by making it easier to insert and iron the textiles.
The option of longitudinal folding with one or two folds on two independent tracks, together with one working track for sheets and two tracks for table linen or smaller textiles, underlines the versatility of this industrial cylinder mangle. A touchscreen control allows individual programming and adaptation to specific requirements, achieving high production capacity depending on the residual moisture of the textiles.
The DANUBE SP800-3300 - E cylinder mangle is therefore an excellent choice for use in industrial and commercial settings where high demands are placed on efficiency, safety, and flexibility.
Features
- Frequency converter
- Powerful steam extraction system
- Compressed air connection required: 6.5 bar
- Automatic stop when cooling down (80 ºC)
- Folding using light barriers and compressed air
- Polished steel roller with finger guard
- Guides made of Nomex for easier insertion and ironing
- Longitudinal folding with 1 or 2 folds on two independent tracks
- One working track for sheets and two for table linen or small items
- A touchscreen control allows programs to be created
- High production capacity depending on the residual moisture of the textiles
Technical features
- Electrical connection: 74.2 kW
- Output: 220-253 kg/h
- Dimensions (HxWxD): 2200x4480x1770 mm
- Weight: 2835 kg
- Electrical voltage: 400 V
- Mains frequency: 50 Hz
- Heating: electrically heated
- Working width: up to 3500 mm
- Roller diameter: up to 800 mm
- Laundry mangle type: Cylinder mangle
- Operation (model): wall-mounted model (2 persons)
