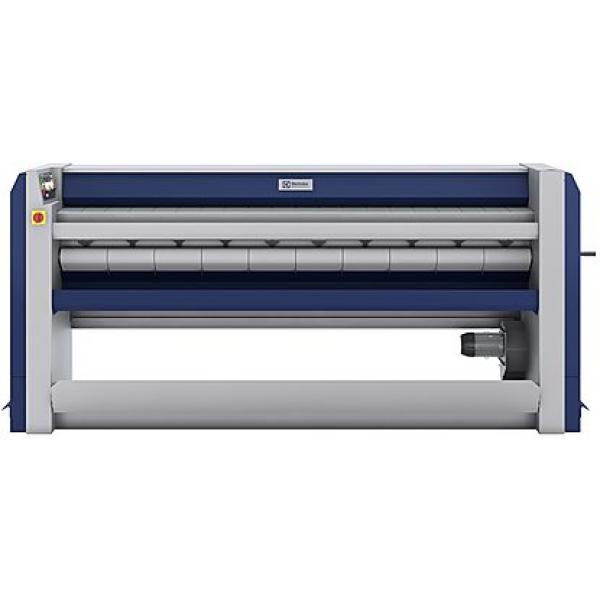

The Electrolux Professional IC63320 - DIAMMS - E cylinder ironer is an industrial cylinder ironer designed for a continuous and easily manageable workflow. The ergonomic working height facilitates daily use, while the control panel is intentionally kept simple. In combination with the electronic control system, including DIAMMS, this professional cylinder ironer can be precisely adapted to various requirements. The DIAMMS speed control system supports controlled processing of the laundry.
This industrial cylinder ironer is structurally designed for continuous thermal and mechanical operation. The pressure roller with a Nomex® coating and the robust Nomex® ironing belts, which withstand temperatures exceeding 220 °C, are engineered to handle high-temperature loads. In addition, a 3 mm stainless steel cylinder prevents rust and extends the service life. For heating, the commercial cylinder ironing machine uses a maintenance-free ceramic gas burner, which reduces downtime to a minimum.
The cylinder ironer for industrial and commercial use is also designed with practicality in mind when it comes to installation and safety. Thanks to its recirculation system, the commercial cylinder ironer can be installed against a wall to save space. The foldable feed tray prevents larger laundry items from touching the floor, which facilitates handling during loading. The equipment is complemented by a finger guard cover as well as an automatic stop and cool-down function. As a result, this industrial cylinder ironing machine combines a design focused on ease of use, safety, and compact integration.
Features
- Cylinder Mangler
- Ergonomic working height
- Easy-to-use control panel
- DIAMMS speed control
- Pressure roller with Nomex® coating
- Automatic stop and cooling function
- Electronic control system including DIAMMS
- Finger guard for added safety
- Recirculation; can be installed against a wall to save space
- Maintenance-free ceramic gas burner for minimal downtime
- Durable Nomex® straps that withstand temperatures over 220° C
- 3 mm stainless steel cylinder that prevents rust and extends service life
- Foldable feed tray to prevent large laundry items from touching the floor
Technical Specifications
- Electrical connection: 22.5 kW
- Dimensions (HxWxD): 1145x2505x680 mm
- Weight: 422 kg
- Voltage: 380–415 V
- Power frequency: 50 Hz / 60 Hz
- Heating: electrically heated
- Exhaust air: Yes
- Working width: up to 2000 mm
- Roller diameter: up to 350 mm
- Type of ironing machine: Cylinder ironer
- Operation (Model): Wall-mounted model (1 person)
