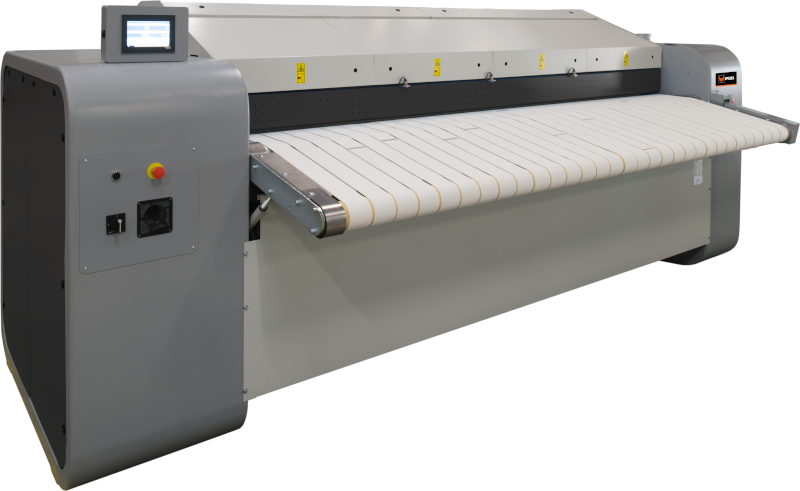

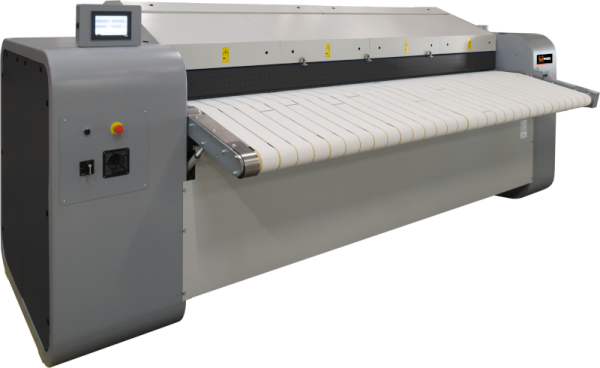

The IPSO ACL 500-2200 - E trough ironer defines the standard for efficiency and quality in the category of industrial trough ironers and commercial trough ironers. This professional trough ironer is characterized by its flexible and double-walled trough, which ensures optimum temperature equalization through thermal oil circulation. The adaptability of the ironing speed by means of a frequency inverter enables infinitely variable adjustment to meet the most diverse requirements of industrial and commercial textile care. Designed as a continuous flow model, the trough ironer offers an efficient solution for continuous work processes in industry and commerce, impressing with its precision and reliability.
Features
- Flexible and double-walled trough
- Temperature equalization through thermal oil circulation
- Infinitely adjustable ironer speed via frequency converter
- continuous flow model
Technical features
- electrical connection: 35 kW
- capacity: 75 kg/h
- Dimensions (HxWxD): 1200x3050x1715 mm
- weight: 1270 kg
- Electrical voltage: 380-415 V
- Mains frequency: 50 Hz
- Heating: electrically heated
- type of finisher: trough finisher
- working width: up to 2500 mm
- Roller diameter: up to 500 mm
- Exhaust air: Yes
- Operation (model): Pass-through model (min. 2 persons)
