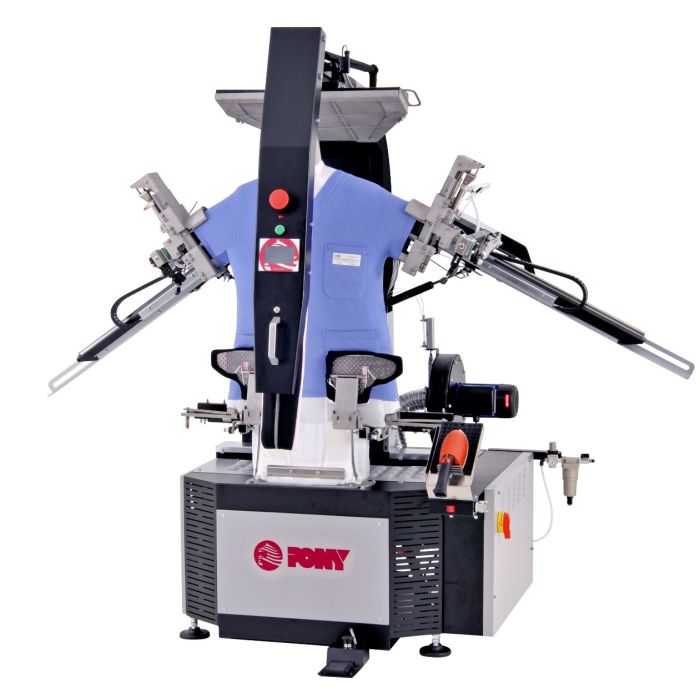

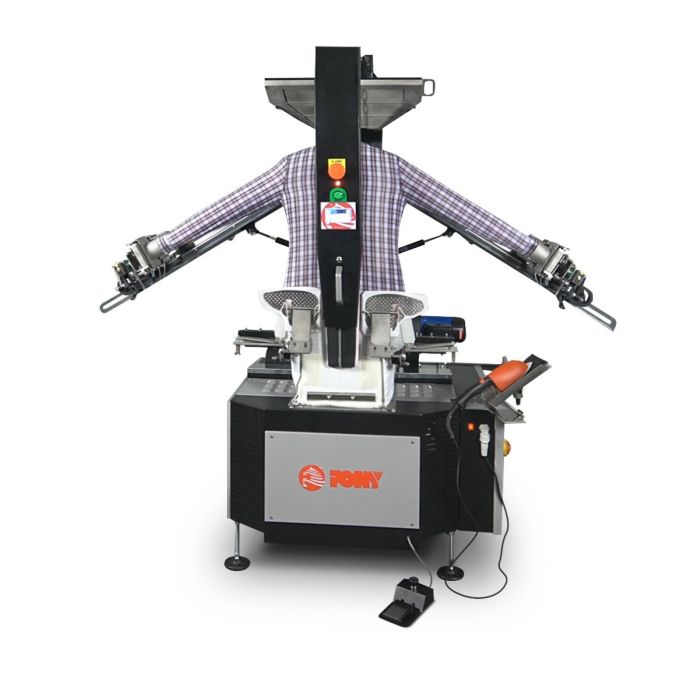

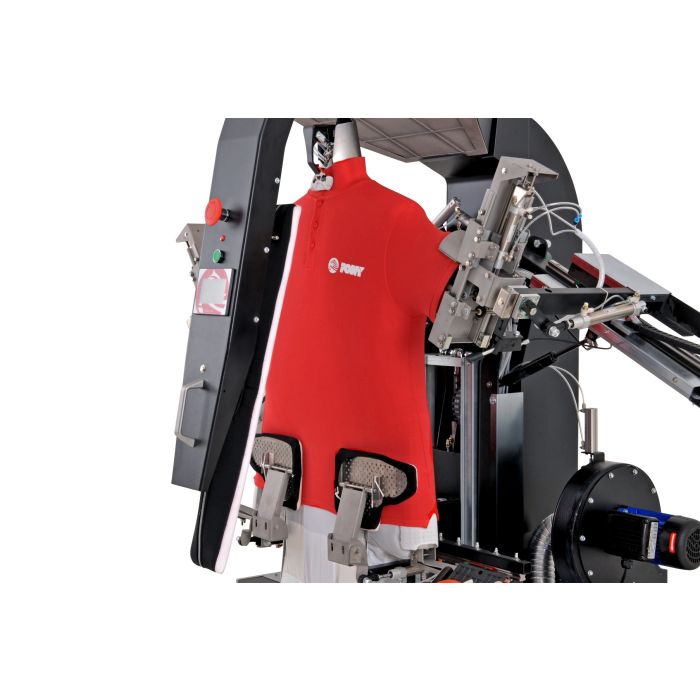

The PONY KITE - D shirt finisher represents the cutting edge of innovation in the field of commercial shirt finishers. This industrial shirt finisher is specially designed for use in industry and commerce to ensure efficient and high-quality processing of dress shirts, women's blouses, polo shirts, and work jackets. With its steam-heated technology and advanced hot air recovery system, the KITE - D offers outstanding efficiency and energy savings.
For optimal adaptation to the specific requirements of commercial use, the shirt finisher for industry and commerce is equipped with a pneumatic shirt tensioning carriage that enables precise processing of garments. The adjustable feet ensure stable positioning of the device, while the photocell for automatic positioning and the mirror simplify handling and monitoring of the processing process.
The two pneumatic sleeve tension clamps of the professional shirt finisher, which can be manually adjusted continuously via gas pressure springs, allow individual adjustment to different sleeve lengths and widths to achieve a perfect finish. In addition, the KITE - D is prepared for connection to compressed air, which further increases the flexibility and efficiency of the system.
The integrated touch screen PLC control with 10 storable programs, diagnostics, and programmed maintenance makes the commercial shirt finisher a user-friendly and low-maintenance device that is ideal for demanding use in commercial laundries, dry cleaners, and the clothing industry. The PONY KITE - D shirt finisher is therefore the ideal solution for all commercial users who value efficiency, quality, and reliability.
Features
- Steam-heated shirt finisher
- Hot air recovery system
- Prepared for connection to compressed air
- Photocell for automatic positioning and mirror
- With pneumatic shirt tensioning carriage and adjustable feet
- Blower for ironing dress shirts, women's blouses, polo shirts, and work jackets
- 2 pneumatic sleeve tensioning clamps, manually adjustable via gas pressure springs
- Touch screen PLC control, with 10 storable programs, diagnostics, and programmed maintenance
Technical features
- Electrical connection: 3.3 kW
- Steam output: 15-20 kg/h
- Steam pressure: 5-7 bar
- Dimensions (HxWxD): 2300x1980x1260 mm
- Weight: 350 kg
- Electrical voltage: 400 V
- Mains frequency: 50 Hz
- Heating: steam heated
- Sleeve stretcher: Yes
- Filling: automatic from water pipe
- Compressed air required: Yes
