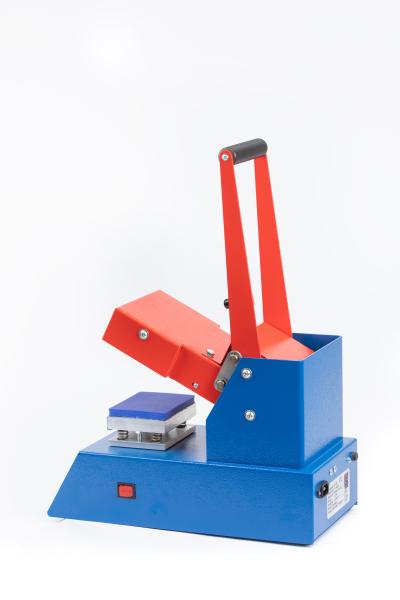

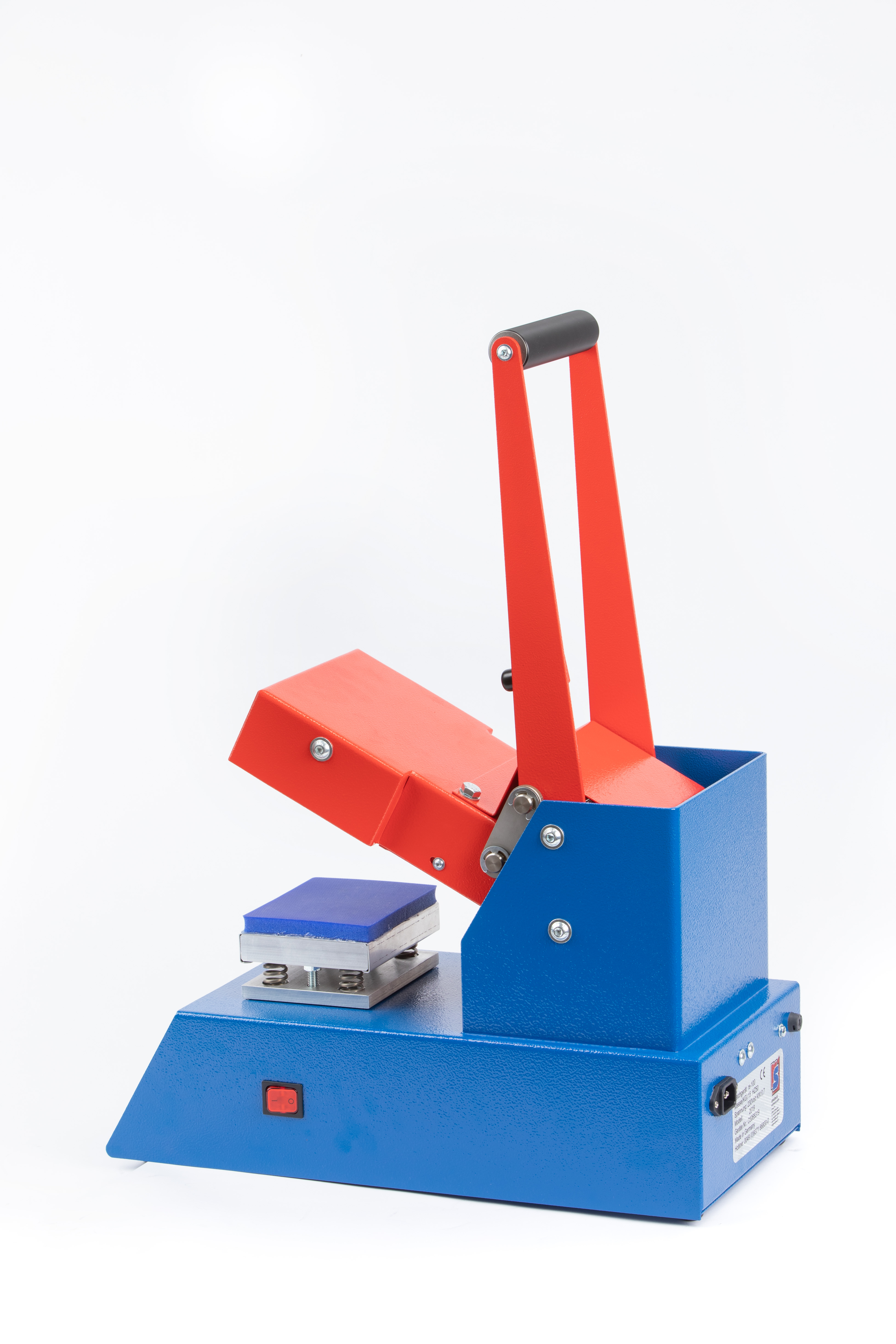

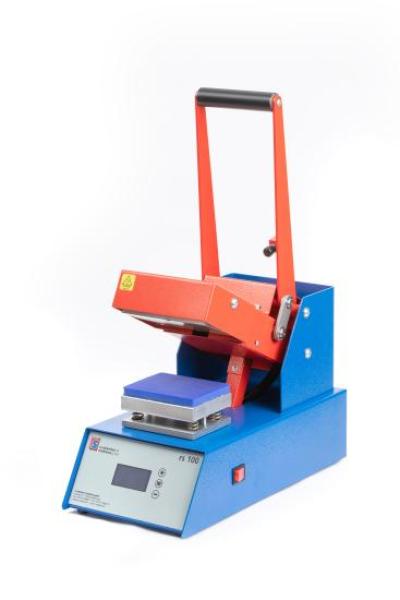

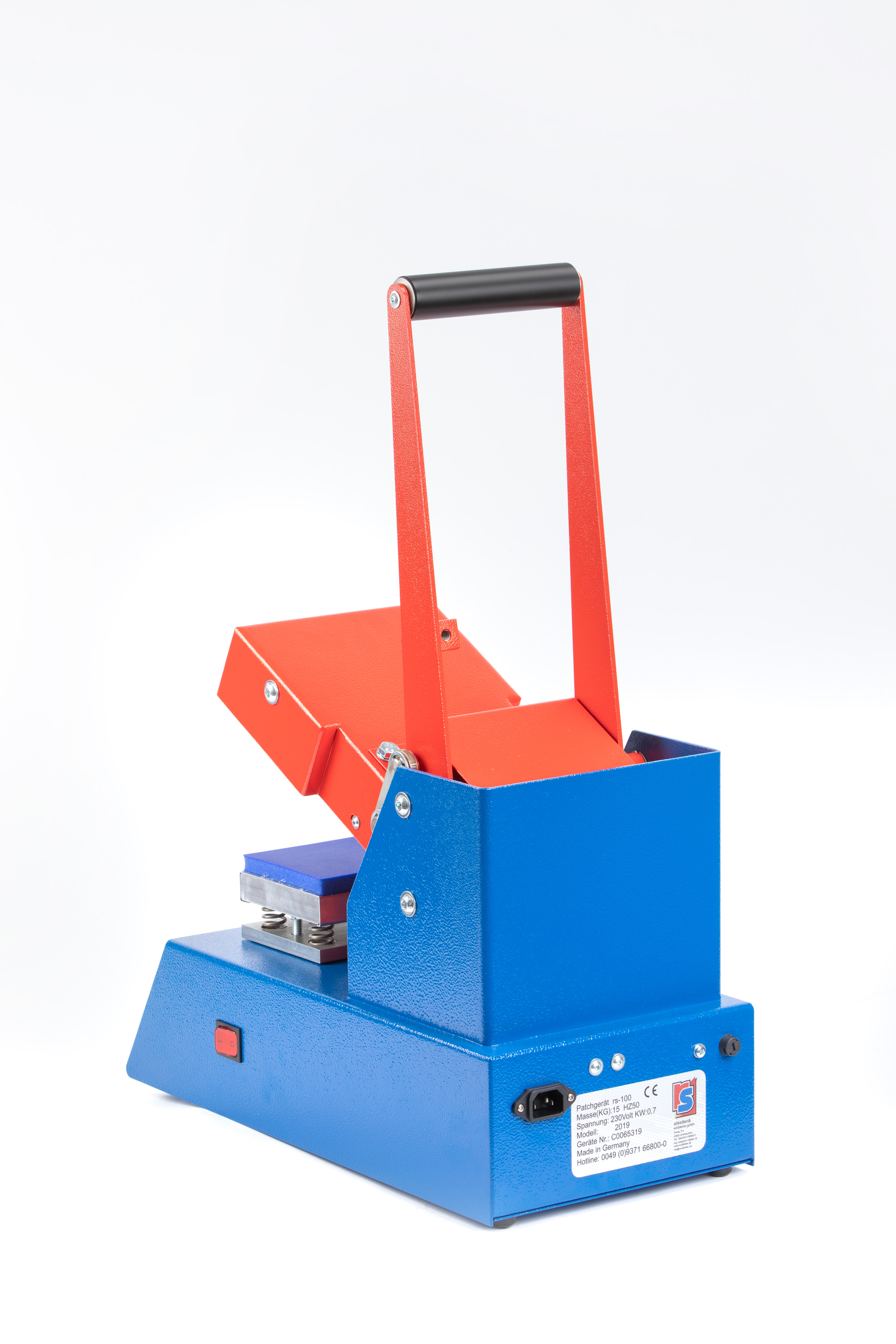

The RS 100 S Self-Opening Label & Emblem Patch Machine is a reliable solution for the precise application of laundry labels in nursing homes, senior living facilities, and laundries. Thanks to its rapid heating, the machine is ready for use in no time and supports a smooth workflow, even with smaller batch sizes. The robust, durable construction ensures high stability in daily use and makes the patching machine a cost-effective investment for commercial applications.
The self-opening mechanism is particularly convenient, facilitating efficient work and reducing the effort required to operate the machine. The wide opening angle creates additional workspace, while the even distribution of pressure and temperature ensures clean and consistent results. With temperature settings ranging from 120° C to 220° C, the RS 100 S can be flexibly adapted to different materials and labeling requirements.
The machine also impresses in practical use with its easily replaceable bottom plates and various bottom plate sizes for small and large labels. The automatic standby mode, which activates after a few minutes of inactivity, enhances energy efficiency and user convenience. This makes the RS 100 S self-opening label and emblem patching machine a well-designed and high-performance solution for the professional application of laundry labels.
Features
- Fast heating
- Robust, durable construction
- Self-opening mechanism
- Suitable for small quantities
- Easily replaceable liners
- Temperature settings: 120° C – 220° C
- Wide opening angle for efficient operation
- Even pressure and temperature distribution
- Various liner sizes for large and small labels
- Standby mode activates after a few minutes of inactivity
- For attaching laundry labels in nursing homes, senior living facilities, and laundries
Technical Specifications
- Power consumption: 550 W
- Dimensions (HxWxD): 500x450x220 mm
- Weight: 20 kg
- Upper shoe: 130x100 mm
- Lower roller: 75x25 and 130x100 mm
- Electronic control: Yes
- Voltage: 230 V
- Power frequency: 50 Hz
